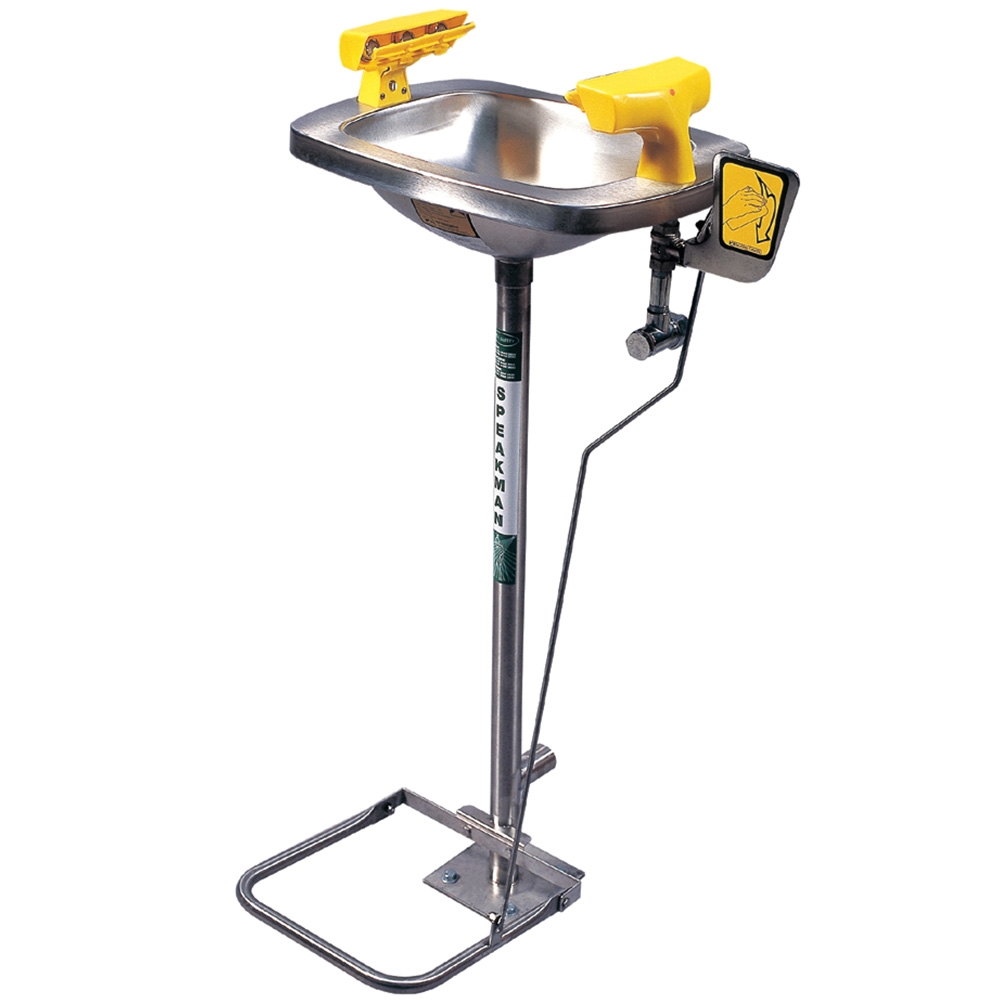

The Speakman SE-480 Pedestal-Mounted Eye/Face Wash (with Rectangular Stainless Steel Receptor) features a stainless steel receptor, stay-open full flow ball valve activated by a stainless steel push handle and/or foot pedal, and in-line strainer. It is mounted on a galvanized steel pipe with a drain tee and floor flange. The spray pattern is a 9” x 8” (72 sq. in.) curtain of aerated water, easily controlled at any pressure for maximum protection.
- Independent laboratory accreditation to the Australian Standard Requirements
- Made to withstand even the most hardy of working environments
- Showers should be placed within 10sec of the possible injury point
- Water supply is also a key factor for installation
RECEPTOR: 300 Series Stainless Steel
SPRAYHEADS: (6) Brass, Chrome-Plated, Aerated
VALVE: 1/2” NPT Female Brass, Chrome-Plated
ACTIVATOR: Stainless Steel Push Handle and Stainless Steel Foot Pedal
SHROUDS: Yellow Polypropylene
INLET: 1” NPT Female
STRAINER: Brass, Chrome-Plated, In-Line
PIPE: 1-1/4” IPS Galvanized Steel
FLOOR FLANGE: Brass Casting with (3) 17/32” Dia. Mounting Holes on 9” Dia. Bolt Circle, Spaced 120° Apart
WASTE: 1-1/4” NPT Female
EMERGENCY SIGN: 7-7/8” x 7-7/8” Plastic Wall Sign
Compliance:
- Complies to AS4775:2007
- Certified to ANSI/ISEA Z358.1
